DOM Events, User Interaction, and Asynchronous Data Integration

Session Time: 120 minutes

Understanding DOM Events and User Interaction
Asynchronous JavaScript and APIs
Managing UI States: Loading, Error, and Success
Leveraging AI for Logic and Data Flow
Lab: Building a Responsive Interface
Wrap-Up and Reflection

Learning Objectives

Upon completion of this session, participants will be able to:

Develop scripts that connect DOM events to asynchronous data retrieval and rendering.
Manage loading, error, and success states for improved usability.
Employ AI to map event and data flow diagrams and refine logic structure.

Session Breakdown

Segment	Topic	Duration (minutes)
Concept I	DOM Events & User Interaction	40
Concept II	Asynchronous Data Integration & UI States	30
Practical Lab	Lab: Building a Responsive Interface	50
Total		120 minutes

1. Understanding DOM Events and User Interaction

Learning objective: Develop scripts that connect DOM events to asynchronous data retrieval and rendering.

Websites become "apps" when they respond to what the user does. This is handled through Events.

What is an Event?

An event is a signal that something has happened. The browser notifies your code, and your code "listens" for these signals to run specific JavaScript functions.

Common Events:

click: User clicks a button or element.
submit: User submits a form.
input / change: User types in a text box.
keydown: User presses a keyboard key.

The Event Listener

To react to an event, we use addEventListener.

const button = document.querySelector("#myButton");

button.addEventListener("click", function(event) {
  console.log("Button was clicked!");
  // Logic to fetch data or update UI goes here
});

Separation of Concerns

It is best practice to keep your JavaScript logic separate from your HTML. Instead of using onclick="..." inside your HTML tags, select the element in JavaScript and attach the listener there. This makes the code cleaner and easier to debug.

DOM Events and the Event Loop

JavaScript is single-threaded, meaning it can only do one thing at a time. However, users expect websites to respond to clicks and inputs immediately, even if the browser is busy doing something else. The Event Loop is the mechanism that makes this possible.

How They Work Together

When you attach an event listener to a DOM element (like a button), JavaScript doesn't pause and wait for the click. Instead, it offloads that "waiting" task to the browser (Web APIs) and keeps running the rest of your code.

Here is the step-by-step flow:

Call Stack (The Main Thread): Your JavaScript code runs here line-by-line. When it sees addEventListener, it registers the event and immediately moves on.
Web APIs (The Waiting Room): The browser keeps track of the event listener in the background. It "listens" for the user to click.
Callback Queue (The Line): When the user finally clicks the button, the browser takes the function you wrote (the callback) and puts it into the Callback Queue. It doesn't run yet!
The Event Loop (The Traffic Controller): The Event Loop constantly checks two things:
- Is the Call Stack empty? (Is JavaScript finished with its current work?)
- Is there something in the Callback Queue?
Crucial Rule: The Event Loop will only move the callback from the Queue to the Stack when the Stack is completely empty.

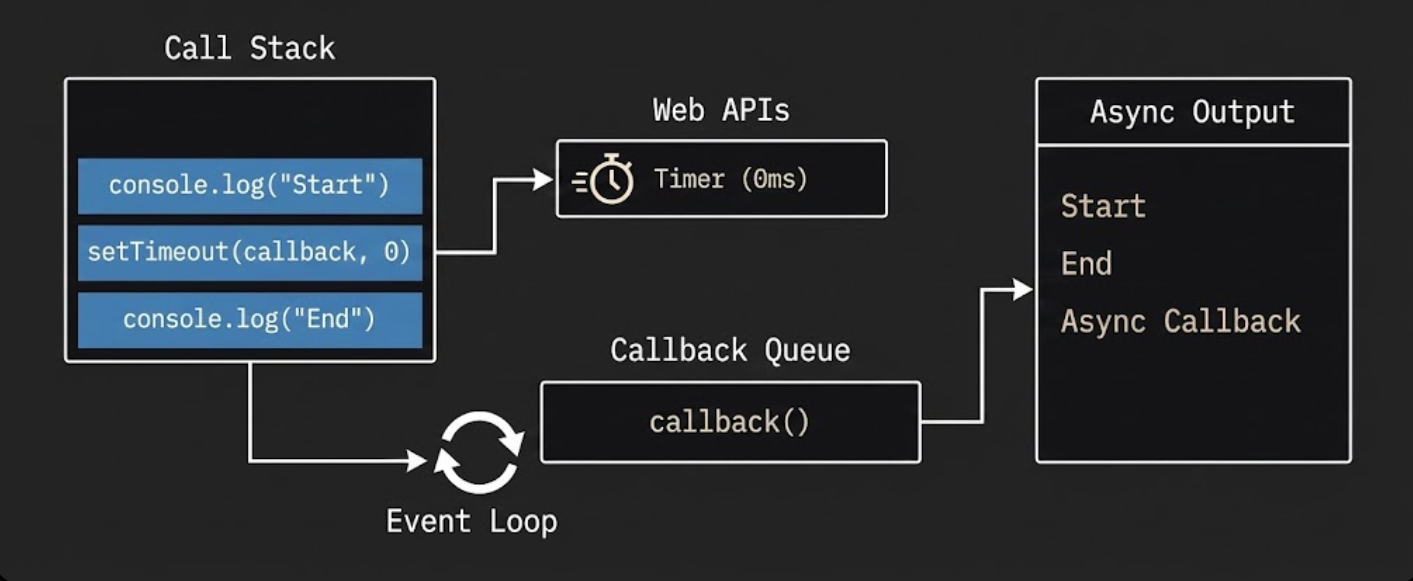

Event Loop

Code Example: Proving the Loop

To understand this relationship, look at the order in which code executes. Even if a timeout is set to 0 milliseconds, it still goes through the Event Loop, placing it after synchronous code.

console.log("1. Script Start"); // Synchronous: Runs immediately

const button = document.querySelector("button");

button.addEventListener("click", () => {
  console.log("3. Button Clicked!"); // Asynchronous: Waits in Queue
});

// Let's simulate a click programmatically for this example
button.click();
// Note: Programmatic clicks usually run synchronously,
// but user interaction is always asynchronous in the loop.

setTimeout(() => {
  console.log("4. Timeout (Async)"); // Asynchronous: Waits in Queue
}, 0);

console.log("2. Script End"); // Synchronous: Runs immediately

Real-World Implication: If you have a heavy operation (like a massive loop) running on the main Call Stack, the Event Loop acts like a closed gate. Even if the user clicks the button 10 times, the click callbacks will sit in the Queue waiting for the stack to clear. This is why heavy calculations can make a webpage feel "frozen."

AI-Assisted Learning Tip

The Event Loop is one of the hardest concepts for beginners to visualize.

Try this prompt:

"I have a block of JavaScript code with synchronous logs, a setTimeout, and a Promise. Can you simulate the Event Loop step-by-step and tell me the exact order the logs will appear in the console? Explain why the Promise might run before the Timeout."

2. Asynchronous JavaScript and APIs

Learning objective: Develop scripts that connect DOM events to asynchronous data retrieval and rendering.

In JavaScript, understanding how code executes is critical for building web pages that feel fast and responsive. The difference lies in whether the browser waits for a task to finish before moving on to the next one.

2.1. Synchronous Programming (Blocking)

Definition: Synchronous code runs in sequence, line-by-line. The browser must finish the current line of code before moving to the next one. If one task takes a long time (like a complex calculation), the entire application stops and waits. This is often called "blocking."

Real-World Analogy: Think of a phone call. You call someone, and you must stay on the line until the conversation is over. You cannot do anything else (like talk to a second person) until you hang up.

Code Example:

console.log("1. Start");

// Imagine this loop takes 3 seconds to finish
for (let i = 0; i < 1000000000; i++) {
  // logic here
}

console.log("2. Finish");

Output:

"1. Start" prints.
The browser freezes while the loop runs.
"2. Finish" prints only after the loop is done.

2.2. Asynchronous Programming (Non-Blocking)

Definition: Asynchronous code allows the browser to start a task and move on to the next line immediately, without waiting for the first task to finish. When the long-running task finally completes, it notifies the browser to come back and handle the result. This prevents the website from freezing.

Real-World Analogy: Think of sending a text message. You send a message (start the task) and immediately put your phone in your pocket to do other things (cook, walk, work). When the reply comes later (the task finishes), your phone buzzes to let you know.

Code Example:

console.log("1. Start");

// setTimeout is a basic async function
setTimeout(() => {
  console.log("2. Timer Done!");
}, 2000); // Waits 2 seconds

console.log("3. End");

Output:

"1. Start" prints.
The browser sees setTimeout and starts a timer in the background, but immediately moves on.
"3. End" prints instantly.
Two seconds later, "2. Timer Done!" prints.

Why This Matters for Web Development

Websites rely heavily on Asynchronous code for fetching data (APIs). If we used Synchronous code to fetch data from a server, the entire webpage would freeze and become unresponsive (the user couldn't click or scroll) until the data arrived.

Synchronous vs. Asynchronous

Synchronous: Code runs line-by-line. If one line takes 5 seconds (like a large calculation), the whole browser freezes until it finishes. Good for simple logic, math, and rendering.
Asynchronous: Code starts a task (like fetching data) and moves on. When the task finishes, it notifies the code to come back and handle the result. Essential for network requests, reading files, or timers.

sequenceDiagram
    participant U as User
    participant B as Browser (JS)
    participant A as API (Server)

    Note left of U: User Clicks Button
    U->>B: Click Event Triggered
    B->>A: 1. Fetch Data (Async Request)
    Note right of B: Browser continues to work.<br/>UI is NOT frozen.
    A-->>B: 2. Data Returned (Promise Resolved)
    B->>U: 3. Update UI with Data

The Fetch API

We use the built-in fetch() function to get data from APIs.

async function getUserData() {
  try {
    const response = await fetch('[https://api.example.com/user](https://api.example.com/user)');
    const data = await response.json();
    console.log(data);
  } catch (error) {
    console.error("Error fetching data:", error);
  }
}

Common Asynchronous APIs in JavaScript

Asynchronous JavaScript is not just about fetching data; it handles timing, animations, and system resources. Below is a list of the most common asynchronous APIs you will encounter as a front-end developer.

API / Feature	Short Explanation	Common Use Case
setTimeout	Executes a function once after a specified delay (in milliseconds).	Delaying an alert, creating a pause before an action, or "debouncing" a search input so it doesn't fire on every keystroke.
setInterval	Repeatedly executes a function at a specified interval.	Creating a countdown timer, an image carousel that auto-rotates, or polling a server for updates every few seconds.
Fetch API	The modern standard for making network requests. It returns a Promise that resolves to the response.	Retrieving user data from a database, loading a list of products, or submitting a contact form without reloading the page.
Promise	An object representing the eventual completion (or failure) of an asynchronous operation.	The foundation of modern async code. Used when wrapping older callback-based functions or handling multiple async operations at once.
async / await	Syntactic sugar built on top of Promises. It allows you to write asynchronous code that looks and behaves like synchronous code.	Making API calls readable and easier to debug. This is the preferred way to handle `fetch` requests in modern development.
Geolocation API	Allows the user to provide their location to the web application asynchronously.	Asking for user permission to find "restaurants near me" or plotting a user's position on a map.

AI-Assisted Learning Tip

The difference between Promise.then() syntax and async/await syntax can be confusing for beginners. You can use an AI tool to translate between them to understand how they relate.

Try this prompt:

"I have this code using .then() chains. Can you rewrite it using async/await and explain step-by-step what changed?"

Example Code to paste:

fetch('[https://api.example.com/data](https://api.example.com/data)')
  .then(response => response.json())
  .then(data => console.log(data))
  .catch(error => console.error(error));

3. Managing UI States: Loading, Error, and Success

Learning objective: Manage loading, error, and success states for improved usability.

When you fetch data asynchronously, it is not instant. You must tell the user what is happening during the wait.

The Three Main States

Loading State: The request has been sent, but the data hasn't arrived.
- UI Action: specific Disable the button, show a spinner, or display text saying "Loading...".
Success State: The data arrived correctly (Status 200).
- UI Action: Hide the spinner, render the data to the DOM.
Error State: The request failed (Status 404 or 500, or network failure).
- UI Action: Hide the spinner, show a helpful error message to the user (e.g., "Could not load user data. Please try again.").

Visualizing Async Data Flow

The diagram illustrates the logic flow of an async/await function, highlighting how the Loading, Success, and Error states are handled during the lifecycle of a request.

flowchart TD
    Start((User Action)) --> SetLoading[Set Loading State - Spinner On, Button Disabled ]
    SetLoading --> Fetch[Await Fetch Data - Pause Execution]
    Fetch --> Check{Request Success?}

    Check -- Yes (200 OK) --> Process[Process JSON Data]
    Process --> UpdateUI[Update UI with Data]

    Check -- No (Error) --> HandleError[Show Error Message]

    UpdateUI --> Cleanup[Reset Loading State - Spinner Off, Button Enabled]
    HandleError --> Cleanup

    Cleanup --> End(((End)))

    %% Styling for visual clarity
    classDef loading fill:#e1f5fe,stroke:#01579b,stroke-width:2px;
    classDef success fill:#e8f5e9,stroke:#2e7d32,stroke-width:2px;
    classDef error fill:#ffebee,stroke:#c62828,stroke-width:2px;

    class SetLoading,Cleanup loading;
    class Process,UpdateUI success;
    class HandleError error;

Code Structure Example:

async function handleButtonClick() {
  // 1. START LOADING
  showSpinner();
  disableButton();

  try {
    const data = await fetchData();
    // 2. SUCCESS
    renderData(data);
  } catch (error) {
    // 3. ERROR
    showErrorMessage("Something went wrong.");
  } finally {
    // CLEANUP (Always runs)
    hideSpinner();
    enableButton();
  }
}

4. Leveraging AI for Logic and Data Flow

Learning objective: Employ AI to map event and data flow diagrams and refine logic structure.

Asynchronous logic can get messy. AI tools are excellent at visualizing the flow of data and spotting potential logic traps.

AI Use Case: Visualizing Flow

You can describe your intended feature to an AI to generate a sequence diagram (like the Mermaid diagram above) or a flowchart.

Prompt Example:

"I am building a search feature. When the user types in the input, I want to wait 500ms, then fetch data from an API. If the API fails, I show an error. Can you generate a text-based flowchart or Mermaid diagram representing this user flow and data logic?"

AI Use Case: Logic Refinement

You can paste your async/await function into an AI tool to check for "race conditions" or missing error handling.

Prompt Example:

"Here is my JavaScript function for fetching weather data. I want to make sure I am handling the 'Loading' and 'Error' states correctly for good UX. specific Can you critique my logic and suggest improvements?"

5. Lab: Building a Responsive Interface

Learning objective: Create a responsive interface that fetches and displays API data triggered by user input. Use AI to evaluate event and async logic, suggesting refinements for clarity, performance, and maintainability.

Overview

In this lab, you will build a "User Finder" card. You will create a button that, when clicked, fetches a random user's data from a public API and displays their name and photo. You will explicitly handle Loading and Error states.

Part 1: HTML Structure & CSS

Create an index.html file.
Add a container div for the user card.
Add a <button id="fetch-btn">Find User</button>.
Add a placeholder div for the user content (initially empty) and a p tag for error messages (initially hidden).
Add basic CSS to center the card on the screen.

Part 2: JavaScript Logic (Manual Implementation)

Select your button and content elements using document.querySelector.
Attach a click event listener to the button.
Inside the listener, use fetch to call https://randomuser.me/api/.
Implement the Loading State: Change button text to "Fetching..." immediately after the click.
Implement the Success State: Parse the JSON, extract the user's name and image URL, and insert them into the DOM.
Implement the Error State: Wrap your code in a try...catch block. If it fails, display a red error message.

Part 3: AI-Assisted Optimization

Copy your finished JavaScript code.
Prompt the AI:

"I have written this JavaScript code to fetch user data. Can you analyze the control flow? Specifically, check if I am resetting the Loading state correctly in both the 'Success' and 'Error' scenarios. Also, explain how await pauses the execution in this specific context."
Visualizing the Event: Ask the AI:

"Create a Mermaid sequence diagram that shows the User, the Browser, and the API interaction based on the code I just wrote."
Paste the generated code into a Mermaid live editor (or view it in the chat if supported) to see the visual representation of your code.

Deliverable: Logic & Flow Report

Submit a brief report containing:

The Mermaid diagram generated by the AI representing your code's flow.
One improvement the AI suggested regarding your state management (Loading/Error/Success).
A brief explanation of why async/await is necessary for this user experience.

6. Wrap-Up and Reflection

Discussion Questions:

Why is it important to show a "Loading" state to users even if the request only takes 1 second?
How did the AI explanation of the "Event Loop" or "Async Flow" differ from reading the documentation manually?
What happens to the user interface if we perform a synchronous network request (if that were possible) instead of an asynchronous one?

DOM Events, User Interaction, and Asynchronous Data Integration

Table of Contents

Learning Objectives

Session Breakdown

1. Understanding DOM Events and User Interaction

What is an Event?

The Event Listener

Separation of Concerns

DOM Events and the Event Loop

How They Work Together

Code Example: Proving the Loop

AI-Assisted Learning Tip

2. Asynchronous JavaScript and APIs

2.1. Synchronous Programming (Blocking)

2.2. Asynchronous Programming (Non-Blocking)

Why This Matters for Web Development

Synchronous vs. Asynchronous

The Fetch API

Common Asynchronous APIs in JavaScript

AI-Assisted Learning Tip

3. Managing UI States: Loading, Error, and Success

The Three Main States

Visualizing Async Data Flow

4. Leveraging AI for Logic and Data Flow

AI Use Case: Visualizing Flow

AI Use Case: Logic Refinement

5. Lab: Building a Responsive Interface

Overview

Part 1: HTML Structure & CSS

Part 2: JavaScript Logic (Manual Implementation)

Part 3: AI-Assisted Optimization

Deliverable: Logic & Flow Report

6. Wrap-Up and Reflection

Resources
